1.Cylinder Tube
According to the work pressure,work temperature,work situation and
other special requirements,different cylinder tube will be choosed.
1.1 Cylinder Tube:cold drawn precision seamless steel tube,hot
rolled seamless steel tube,forged tube.
1.2 Tube Material: SAE1020(20#) , SAE1045(45#)
,16Mn(Q345B),27SiMn,etc.
1.3 Surface Roughness:R0.16-0.32μm
1.4 Inside Chromating:If necessary,inside tube will be chromated.
2.Piston Rod
2.1 Rod Material:35#,SAE1045(45#),35CrMo,42CrMo4,etc.
2.2 Technical Treatment: Quenched and tempered.1.5-1mm,or 1.03mm
per millimetre.

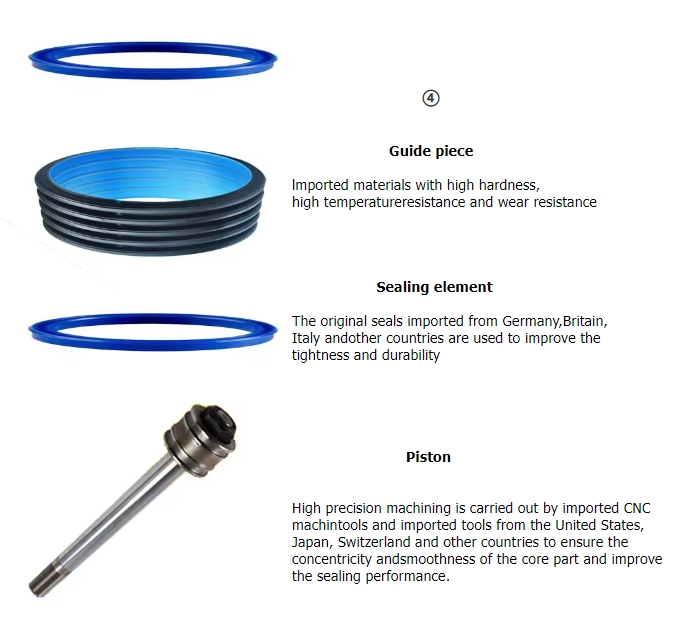

3.Seal Kits
According to customers' requirements and work condition,we will
choose suitable seal
kits,including:Hallite,SKF,Parker,Merker,Trelleborg,China
made,Taiwan made.We will supply you suitable seal kits to ensure
hydraulic cylinders a long lifetime,easy maintenance and simple
repairing.
4.Inspection and Testing
4.1 We have professional quality control department,every step from
raw material to finished product is in the same factory,each
procedure will be tested by professional inspector.
4.2 Before hydraulic cylinder is assemblied , every spare parts
would be measured and cleaned .After hydraulic cylinder is
assemblied , pressure test would be carried out one by one.We
ensure the testing pressure is 30%-50% higher than rated pressure
in almost one hour's test.Each hydraulic cylinder must be tested
without any leakage.
